Fortran and Eclipse on the Mac

In this post, I describe how I installed a Fortran compiler within Eclipse on my 64-bit Macintosh running the Snow Leopard system (OS X 10.6.5).

The first step was to get the “Eclipse IDE for C/C++ Developers” Helios package from

http://www.eclipse.org/downloads/packages/eclipse-ide-cc-developers/heliosr. I downloaded the file eclipse-cpp-helios-macosx-cocoa-x86_64.tar.gz (86.9 MB) by clicking on the “Mac OS X(Cocoa 64)” link. The Helios release (Eclipse 3.6 of 2010-06-23) includes the Photran package.

I placed the downloaded file in a directory I will identify with /basedir/ for simplicity. I completed the installation of the package by expanding it. The Eclipse application was in /basedir/eclipse/Eclipse.app

Photran is part of Eclipse's Parallel Tool Platform (PTP). Therefore, the next step was to install PTP. To do so, I performed the following steps from within Eclipse:

• Opened “Help > Install New Software...”
• Chose “Helios - http://download.eclipse.org/releases/helios” in “Work with:” drop down menu.
• Expanded the “General Purpose Tools” category by clicking on the little triangle on its left.

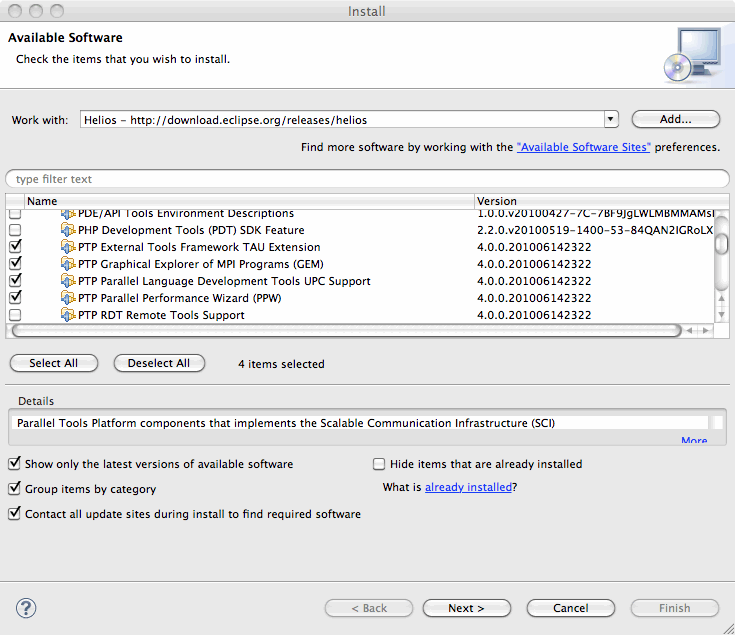

• Scrolled down until I reached the PTP-related items and selected four of them as shown in the following snapshot:

• In the “Programming Languages” category, I selected Fortran as shown in the following snapshot:

• Clicked on “Next” and then on “Finish”, restarting Eclipse when prompted.

The default Fortran compiler for Eclipse is gfortran. But as Eclipse Helios is a 32-bit application, I had to download the gfortran for MacOS X Tiger and Leopard, not for the latest Snow Leopard, which is a 64-bit OS. To get the 32-bit version of gfortran, I went to http://hpc.sourceforge.net/ and clicked on

gfortran-leopard-intel-bin.tar.gz (Intel Mac gfortran only), updated June 2009 (Leopard only)

(14.6 MB)

After expanding it into /basedir/, I got a folder named usr with inside a folder named local. Clearly, I was supposed to expand it from the root directory.

So, I typed in a terminal window (as root) the following command:

$ mv -v /Basedir/usr/local/* /usr/local/

/Basedir/usr/local/bin -> /usr/local/bin

/Basedir/usr/local/include -> /usr/local/include

/Basedir/usr/local/lib -> /usr/local/lib

/Basedir/usr/local/libexec -> /usr/local/libexec

/Basedir/usr/local/share -> /usr/local/share

Note that there must not be spaces in the directory names, because gfortran/gcc cannot cope with it. Be aware that gfortran is also available from http://gcc.gnu.org/wiki/GFortranBinaries, but if you download from there the file gfortran-macosx-x86.dmg allegedly for Tiger and Leopard, you actually get the 64-bit gfortran for Snow Leopard! Perhaps they have fixed it by now...

When I tried to compile a simple Fortran program, “make” reported the following error on the Eclipse console:

**** Build of configuration Release for project ftest ****

make all

Building file: ../ftest.for

Invoking: GNU Fortran Compiler

gfortran -funderscoring -O3 -Wall -c -fmessage-length=0 -o"ftest.o" "../ftest.for"

/bin/sh: gfortran: command not found

make: *** [ftest.o] Error 127

The problem occurred because Eclipse doesn’t get the paths from /etc/paths, but from the XML file ~/.MacOSX/environment.plist

as explained in:

http://developer.apple.com/mac/library/qa/qa2001/qa1067.html

and

http://wiki.eclipse.org/PTP/photran/documentation/photran6

Indeed, if you look at /etc/paths you find:

/usr/bin

/bin

/usr/sbin

/sbin

/usr/local/bin

Here is what I did to create the necessary file:

$ cd

$ mkdir ~/.MacOSX

$ cd ~/.MacOSX

$ cat > environment.plist

<xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple Computer//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">

<plist version="1.0">

<dict>

  <key>PATH</key>

  <string>/usr/bin:/bin:/usr/sbin:/sbin:/usr/local/bin</string>

</dict>

</plist>

cntl-D

environment.plist sets the environment for all processes launched by a specific user.

I logged out and back in on the Mac, to force a loading of environment.plist.

At this point, I could launch my test program by double-clicking on its icon, but not from within Eclipse. Eclipse’s “Binaries” folder was not there. This was bad also because without binaries I couldn’t use the debugger. The problem was that Snow Leopard by default compiles objects for 64-bit processors, while Eclipse Helios only understands 32-bits. I found the explanation in:

http://stackoverflow.com/questions/1668447/launch-failed-binary-not-found-snow-leopard-and-eclipse-c-c-ide-issue

Fortunately, beside gcc 4.2, which is the default C compiler, Snow Leopard also has gcc 4.0, which compiles to 32 bits. What I needed to do was to force the system to use it. Obviously, it is a bit sad to have to generate 32-bit applications when your system can handle 64-bits, but I felt that the convenience of using Eclipse was too good to give up. Once debugged with Eclipse, I could always recompile the program to run on 64 bits. And probably the next version of Eclipse will be 64-bit savvy.

Anyhow, To use 4.0 as a default, I had to go to /usr/bin and type the following as root:

$ cd /usr/bin

$ rm cc gcc c++ g++

$ ln -s gcc-4.0 cc

$ ln -s gcc-4.0 gcc

$ ln -s c++-4.0 c++

$ ln -s g++-4.0 g++

But there was still a problem: When I tried to debug, Eclipse reported dozens of errors like the following two (for libgfortran and libgcc):

warning: Could not find object file "/Users/gkhanna/gcc-4.4-20090623/i386-apple-darwin9.7.0/libgfortran/.libs/matmul_r8.o" - no debug information available for "../.././libgfortran/generated/matmul_r8.c".

warning: Could not find object file "/Users/gkhanna/gcc-4.4-20090623/i386-apple-darwin9.7.0/libgcc/_muldi3_s.o" - no debug information available for "../.././libgcc/../gcc/libgcc2.c".

But the debugger worked! I could set breakpoints in Fortran! And there was no user named gkhanna on my Mac. G.Khanna was the guy who built the libraries I downloaded from http://hpc.sourceforge.net/ . He clearly built them with objects that had the debugging information in them. He should have stripped the debugging symbols from the objects before building the libraries. I got this information from a couple of places, including: http://www.macresearch.org/gfortran-leopard

I typed

$ nm -a libgfortran.3.dylib | grep matmul_r8

and got the following:

00000000 - 00 0000 SO ../.././libgfortran/generated/matmul_r8.c

4a443ad3 - 00 0001 OSO /Users/gkhanna/gcc-4.4-20090623/i386-apple-darwin9.7.0/libgfortran/.libs/matmul_r8.o

00063a80 T __gfortran_matmul_r8

00063a80 - 01 0000 FUN __gfortran_matmul_r8

This meant that Eclipse was using the dynamic libraries. I needed to strip the debugging symbols from them. To be on the safe side, I made two copies of the dynamic libraries and worked on one of the copies, so that I could always revert to the original libraries if something went wrong.

$ cd work_copy

$ ls –l

total 2736

-rw-r--r--@ 1 giulio staff 261384 26 Jun 2009 libgcc_s.1.dylib

-rw-r--r--@ 1 giulio staff 17372 26 Jun 2009 libgcc_s.10.4.dylib

-rw-r--r--@ 1 giulio staff 17500 26 Jun 2009 libgcc_s.10.5.dylib

-rwxr-xr-x@ 1 giulio staff 996600 26 Jun 2009 libgfortran.3.dylib

-rwxr-xr-x@ 1 giulio staff 76948 26 Jun 2009 libgomp.1.dylib

-rwxr-xr-x@ 1 giulio staff 17040 26 Jun 2009 libssp.0.dylib

$ strip -x libgcc_s.1.dylib

$ strip -x libgcc_s.10.4.dylib

strip: dynamic stub library can't be changed once created: /usr/local/lib/work_copy/libgcc_s.10.4.dylib (for architecture i386)

$ strip -x libgcc_s.10.5.dylib

strip: dynamic stub library can't be changed once created: /usr/local/lib/work_copy/libgcc_s.10.5.dylib (for architecture i386)

$ strip -x libgfortran.3.dylib

$ strip -x libssp.0.dylib

$ ls -l

total 2264

-rw-r--r-- 1 giulio staff 202368 6 Sep 18:46 libgcc_s.1.dylib

-rw-r--r--@ 1 giulio staff 17372 26 Jun 2009 libgcc_s.10.4.dylib

-rw-r--r--@ 1 giulio staff 17500 26 Jun 2009 libgcc_s.10.5.dylib

-rwxr-xr-x 1 giulio staff 818288 6 Sep 18:47 libgfortran.3.dylib

-rwxr-xr-x@ 1 giulio staff 76948 26 Jun 2009 libgomp.1.dylib

-rwxr-xr-x 1 giulio staff 13548 6 Sep 18:47 libssp.0.dylib

When I copied the stripped libraries back to /usr/local/lib/ and tried again my test program in Eclipse, I was happy to see that all nasty warning messages had disappeared!
